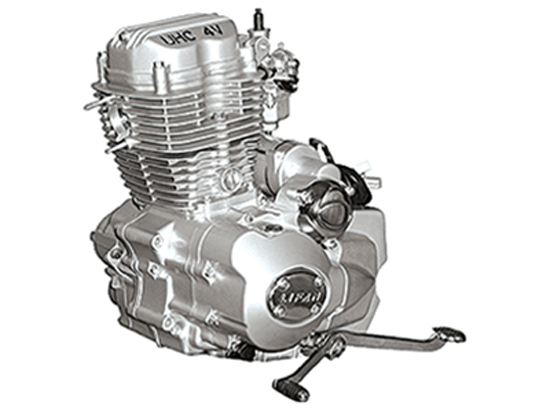

156FMI-2H/162FMJ-L

Vertical-Engine/162MFJ-L
Single-cylinder,four-stroke,air-cooled,hand-clutched,four-valve,electric starter/Kick starter 125cc/150cc
SPECIFICATION
Model:156FMI-2H
Displacement:124.1ml
Compression ratio: 9.4:1
Primary reduction: 4.055

Bore*Stroke:56.5mm*49.5mm
Max. Net Power & Rotating Speed:8.0kw/9500r/min
Rated Power & Rotating Speed:7.5kw/8500r/min
Max.Torque & Rotating Speed:9.2N.m/7500r/min
Min. Fuel Consumption:≤367g/kw.h
Idling Speed:1500r/min
Ignition:CDI
Starter:electric starter/Kick starter
Lubrication: Pressure/splash
Transmission: 5 speed



Model:162FMJ-L
Displacement:149.4ml
Compression ratio: 9.6:1
Primary reduction: 4.055
Bore*Stroke:62mm*49.5mm
Max. Net Power & Rotating Speed:11kw/9000r/min
Rated Power & Rotating Speed:9.5kw/8200r/min
Max.Torque & Rotating Speed:11.5N.m/7500r/min
Min. Fuel Consumption:≤354g/kw.h
Idling Speed:1500r/min
Ignition:CDI
Starter:electric starter/Kick starter
Lubrication: Pressure/splash
Transmission: 5 speed
