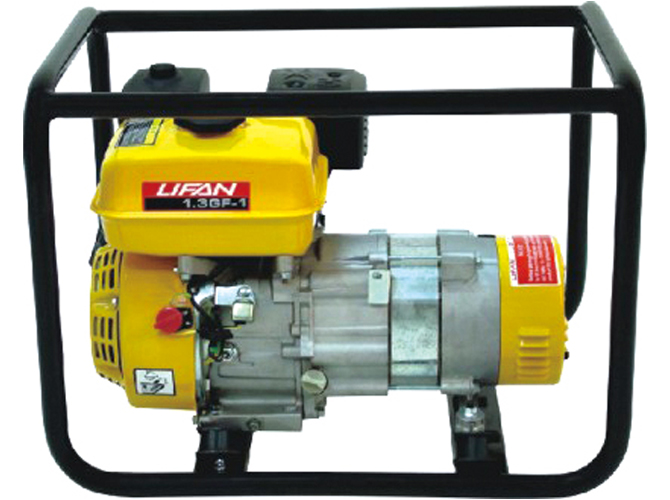

1.3GF-1 (EPA/CARB)(1.3KVA)
NOT AVAILABLE FOR NORTH AMERICAN MARKET
SPECIFICATION
Model: 1.3GF-1
Engine Type: 4-stroke forced-cooled single-cylinder OHV
Model: 168F
Displacement: 163ml
Max. power ouput: 4.0kw/3600rpm
Ignition system: Non-contact transistorized magneto(TCI)
Starting system: Manual
Recommend power using: 3.4kw/3600rpm
Fuel tank capacity: 3.7L
Fuel consumption: 0.9L/hr
Continous operating hour: 3.8hr
Oil capacity: 0.6L
Noise(7meters away): 66dB
Generator:
Rated output frequency: 50Hz
Rated output voltage: 220V
Rated power output: 1.3KVA
Max. power output: 1.5KVA
Ref datas of transportation:
Dimension (L*W*H mm): 590*430*435
N.W: 33kg
Carton dimension(L*W*H mm): 645*490*490
QTY/20GP: 160
QTY/40GP: 336
QTY/40HQ: 420
Standard Features:
Large -capacity air cieaner: -
Large-capacity fuel tank: -
Large-capacity muffle: -
Fuel indicator: -
Voltmeter: -
Auto voltage adjuster: .
Oil alert system: .
Circuit breaker with out fuse: -
Circuit protector: .
Options:
Battery tray: -
4-wheel dolly kit: .
