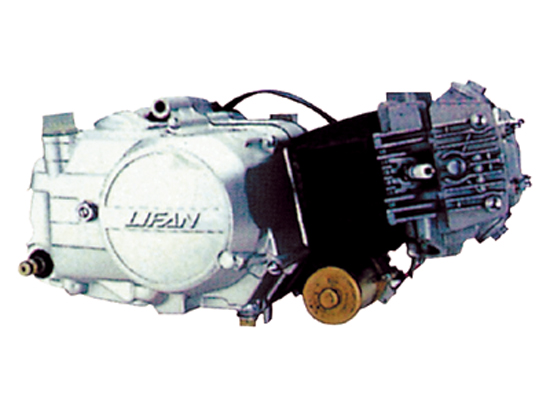

Single-cylinder,four-stroke,air-cooled,double-automatic,clutched bottom-laid auto-wave two-speed 90cc
SPECIFICATION
Displacement:86ml
Compression ratio: 8.5:1
Primary reduction: 4.059
Bore*Stroke:47mm*49.5mm
Max. Net Power & Rotating Speed:4.9kw/7500r/min
Rated Power & Rotating Speed:3.8kw/7500r/min
Max.Torque & Rotating Speed:5.5N.m/4500r/min
Min. Fuel Consumption:≤367g/kw.h
Ldling Speed:1500r/min
Ignition:CDI
Starter: Electric /Kick starter
Lubrication: Pressure/splash
Transmission: auto-wave
