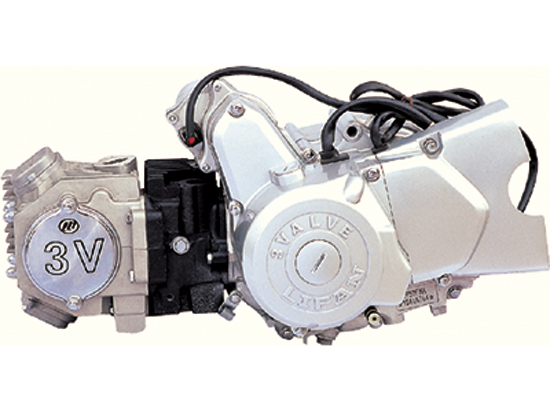

Single-cylinder,four-stroke,air-cooled electric/kick start double-automatic clutched three-valve 100cc
SPECIFICATION
Displacement:97ml
Compression ratio: 9.4:1
Primary reduction: 4.058
Bore*Stroke:50mm*49.5mm
Max. Net Power & Rotating Speed: 4.9kw/7500r/min
Rated Power & Rotating Speed: 4.6kw/7500r/min
Max. Torque & Rotating Speed: 6.2N.m/5000r/min
Min. Fuel Consumption: ≤367g/kw.h
Idling Speed:1500r/min
Ignition:CDI
Starter:Electric starter/kick starter
Lubrication: Pressure/splash
Transmission:4 speed
