Lifan Thailand

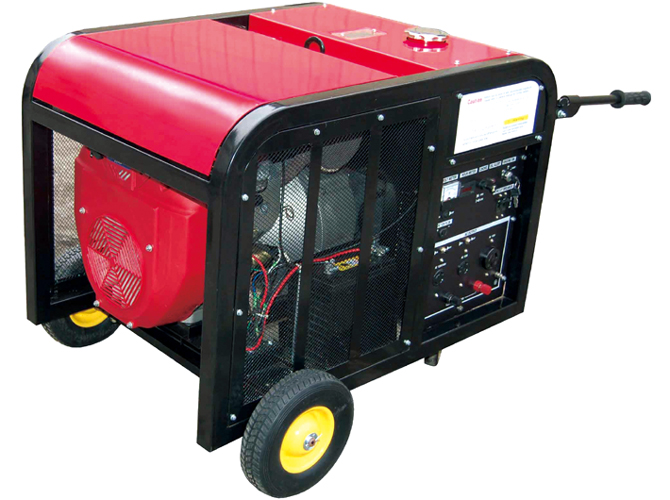

10000E (EPA)
SPECIFICATION
Model:10000E (EPA)

Engine:
Type: V-TWIN -cylinder 4-stroke forced-cooled OHV
Model: 2V77F
Displacement: 614ml
Max. power ouput: 12.5kw/3600rpm
Ignition system: Non-contact transistorized magneto (TCI)
Starting system: Recoil and hand-operated/Electric
Recommend power using: 12kw/3600rpm
Fuel tank capacity: 27.5L
Fuel consumption: 4.6L/hr
Continous operating hour: 6hr
Oil capacity: 1.4L
Noise(7meters away): 80dB

Generator:
Rated output frequency: 60Hz
Rated AC voltage: 220V/400V
Rated AC output: 8.5KVA
Max. power output: 9.5KVA
Rated amperage: 38.6A/17A
Phase: Single/three
Ref datas of transportation:
Dimension (L*W*H mm): 960*630*620
N.W: 170kg
Carton dimension(L*W*H mm): 1050*710*770
QTY/20GP: 45
QTY/40GP: 98
QTY/40HQ: 98
