SPECIFICATION

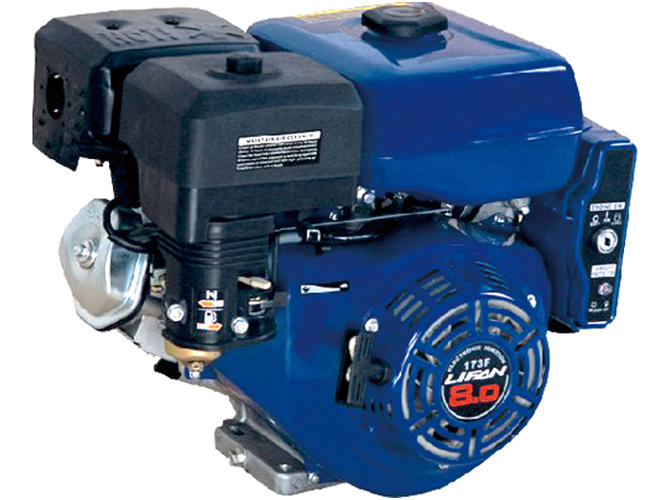

Model: 173FD (CE/EC, EPA)(8PS)
Engine type: 4-stroke 25° single-cylinder with air-cooled
Bore*stroke: 72mm*58mm
Displacement: 242ml
Compression ratio: 8.2:1
Max power output: 5.8kw/3600rpm
Recommend power using: 5.1kw/3600rpm
Max torque: 14.5N.m/2500rpm
Ignition system: Non-contact transistorized ignition(TCI)
Start model: Recoil and hand-operated/electric
Air cleaner: Semi-dry oil bath type
Fuel tank capacity: 6.0L
Fuel consumption: 374g/kw.h
Engine oil capacity: 1.1L
Dimension(L*W*H mm): 378*428*408
Dry weight: 25kg
Carton dimension(L*W*H mm): 485*455*510
QTY/20GP: 222
QTY/40GP: 466
QTY/40HQ: 540
