SPECIFICATION

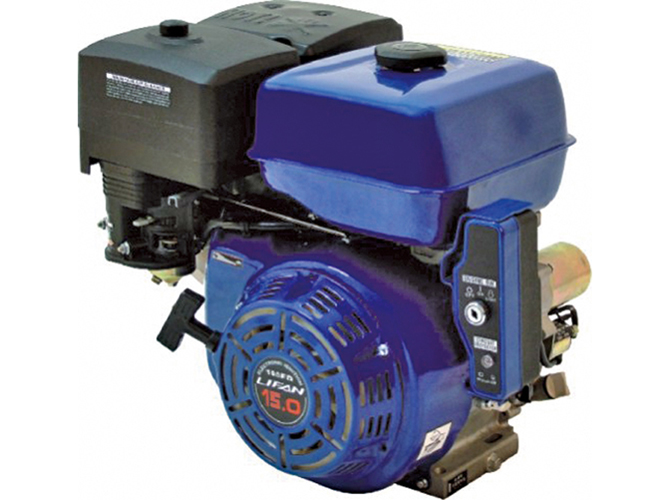

Model: 190FD (CE/EC, EPA/CARB)(15PS)
Engine type: 4-stroke 25° single-cylinder with air-cooled
Bore*stroke: 90mm*66mm
Displacement: 420ml
Compression ratio: 8.2:1
Max power output: 10.5kw/3600rpm
Recommend power using: 8.5kw/3600rpm
Max torque: 25N.m/2500rpm
Ignition system: Non-contact transistorized ignition(TCI)
Start model: Recoil and hand-operated/electric
Air cleaner: Semi-dry oil bath type
Fuel tank capacity: 6.5L
Fuel consumption: 374g/kw.h
Engine oil capacity: 1.1L
Dimension(L*W*H mm): 403*449*440
Dry weight: 34kg/36kg
Carton dimension(L*W*H mm): 485*455*525
QTY/20GP: 222
QTY/40GP: 466
QTY/40HQ: 475
