SPECIFICATION

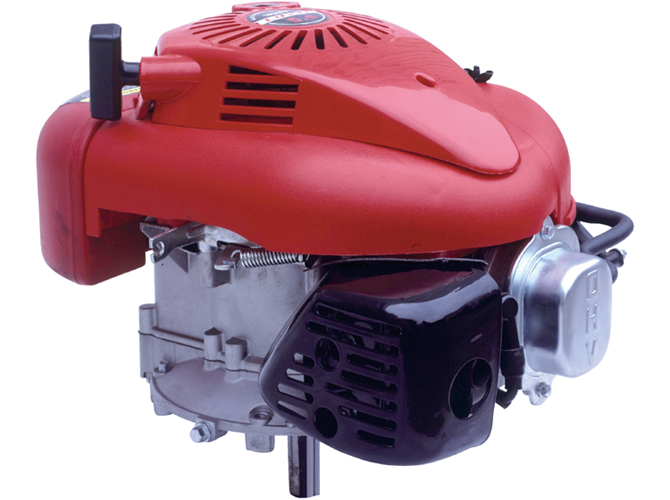

Model:1P65FV (EPA)(5PS)
Engine type: 4-stroke single-cylinder with air-cooled
Bore*stroke: 65mm*42mm
Displacement: 139ml
Compression ratio: 8.0:1
Max power output: 3.7kw/3600rpm
Recommend power using: 2.2kw/3600rpm
Max torque: 6.0N.m/3200rpm
Ignition system: Non-contact transistorized ignition(TCI)
Start model: Recoil and hand-operated
Air cleaner: Semi-dry type
Fuel tank capacity: 1.2L
Fuel consumption: 420g/kw.h
Engine oil capacity: 0.6L
Dimension(L*W*H mm): 470*415*420
Dry weight: 12kg
Carton dimension(L*W*H mm): 540*460*460
QTY/20GP: 250
QTY/40GP: 525
QTY/40HQ: 525
