SPECIFICATION
Model:1P60FV(CE/EC, EPA/CARB) (4.0PS)
Engine type: 4-stroke single-cylinder with air-cooled
Bore*stroke: 60mm*42mm
Displacement: 118ml
Compression ratio: 8.0:1
Max power output: 2.8kw/3600rpm
Recommend power using: 1.8kw/3600rpm
Max torque: 5.2N.m/2500rpm
Ignition system: Non-contact transistorized ignition(TCI)
Start model: Recoil and hand-operated
Air cleaner: Semi-dry type
Fuel tank capacity: 1.8L
Fuel consumption: 395g/kw.h
Engine oil capacity: 0.6L
Dimension(L*W*H mm): 415*345*350
Dry weight: 11.5kg
Carton dimension(L*W*H mm): 470*430*395
QTY/20GP: 325
QTY/40GP: 675
QTY/40HQ: -

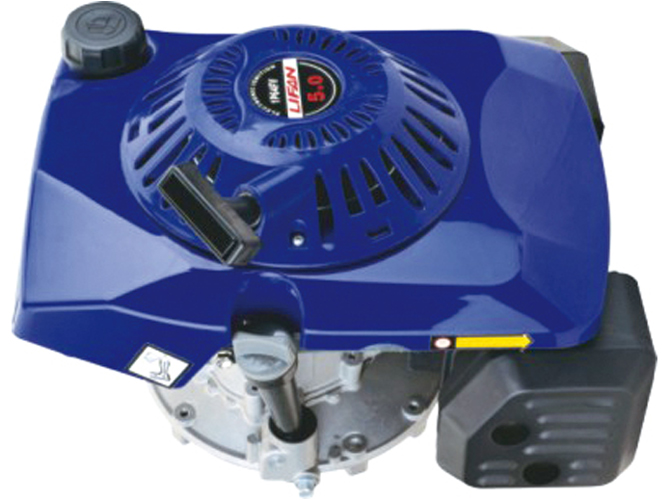

Model:1P64FV (CE/EC, EPA) (5PS)
Engine type: 4-stroke single-cylinder with air-cooled
Bore*stroke: 64mm*42mm
Displacement: 135ml
Compression ratio: 8.0:1
Max power output: 3.7kw/3600rpm
Recommded power using: 2.3kw/3600rpm
Max torque: 6.6N.m/2500rpm
Ignition system: Non-contact transistorized ignition(TCI)
Start model: Recoil and hand-operated
Air cleaner: Semi-dry type
Fuel tank capacity: 1.8L
Fuel consumption: 395g/kw.h
Engine oil capacity: 0.6L
Dimension(L*W*H mm): 415*345*350
Dry weight: 14kg/12kg
Carton dimension(L*W*H mm): 470*430*395
QTY/20GP: 325
QTY/40GP: 675
QTY/40HQ: -
Model:1P68FV(CE/EC, EPA)(5.5PS)
Engine type: 4-stroke single-cylinder with air-cooled
Bore*stroke: 68mm*45mm
Displacement: 163ml
Compression ratio: 8.0:1
Max power output: 4.1kw/3600rpm
Recommded power using: 2.8kw/3600rpm
Max torque: 9.0N.m/2500rpm
Ignition system: Non-contact transistorized ignition(TCI)
Start model: Recoil and hand-operated
Air cleaner: Semi-dry type
Fuel tank capacity: 2.0L
Fuel consumption: 395g/kw.h
Engine oil capacity: 0.6L
Dimension(L*W*H mm): 415*345*350
Dry weight: 16kg
Carton dimension(L*W*H mm): 470*430*395
QTY/20GP: 325
QTY/40GP: 675
QTY/40HQ: -
